LINE ABS

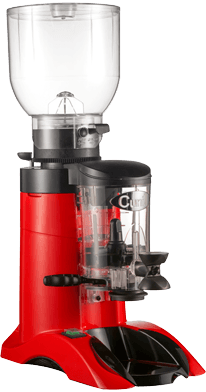

JAMAICA ABS 0-500gr./5’ MAX. 3kg -63dB

MAIN ATTRIBUTES

Hopper (2kg) made of unbreakable and non-deformable material (co.polyester), with fast lock system and self-levelling when off the coffee grinder, with the possibility of cleaning in a dishwasher at 90 °C. Micrometric regulation of the coffee grind using a regulatory pawl. New expulsion system for the ground coffee (always leaving the grinding cavity clean when the coffee grinder stops). Bodywork manufactured in anti-scratch material, in a single piece (less vibrations, more robustness). With ventilation system (internal air inlet and outlet). Large tray integrated into the body, ready to take knocks (portafilter). Single-bodied, hermetically sealed doser without aroma loss, vibrationless and made of unbreakable material. Ergonomic handle. Universal coffee tamper (rotatable). Doser fitted with gasket-saver (portafilter positioner). Hardened steel grinding blades (62/65HRc) 60mm in diameter. Motor assembly with anti-vibration system. Silencer motor with internal autoventilation, 63dB.

Optional
Left- or right-handed doser lever. Coffee counter. Optional personalisation system with chrome plates on the doser and on the rear of the bodywork.

The professional automatic silencer coffee grinder for all types of coffee.

Heavy use.

COLOUR RANGES

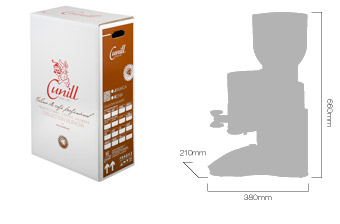

TECHNICAL CHARACTERISTICS

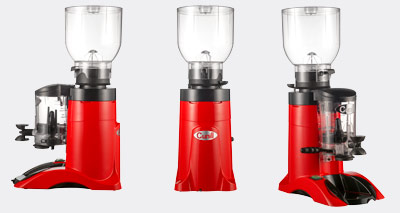

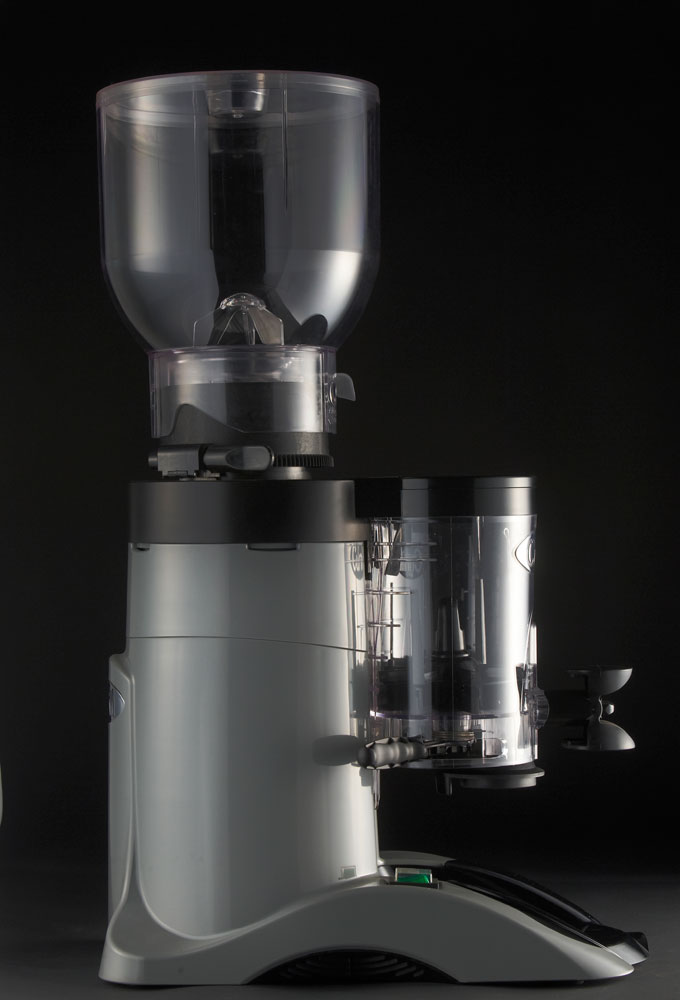

IMAGES OF THE GRINDER

Black

Dark Grey

Grey

White

Red

REFERENCE JAMAICA

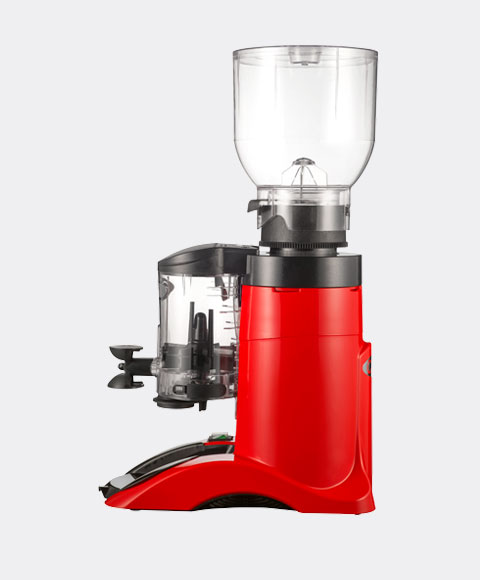

before

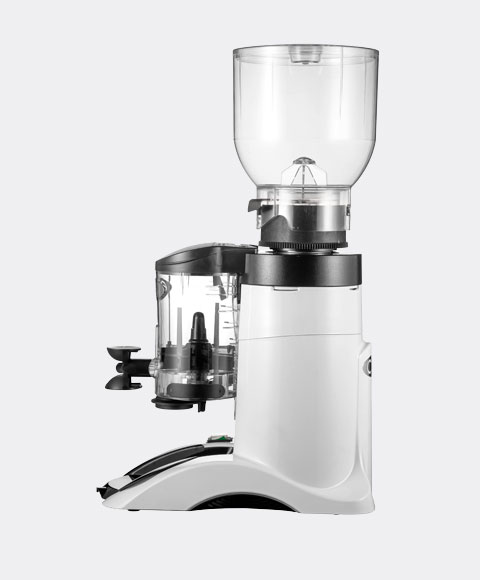

after



DOCUMENTATION


Grinding blades in tempered steel (62HRc) ø 65mm.

DETAILS THAT MAKE A DIFFERENCE

Hopper made of unbreakable and non-deformable material, with rapid fixing and self-levelling when off the grinder, with double neck and suitable for cleaning in a dishwasher at 90 ºC. see(+)

The universal coffee tamper incorporated on the grinders is designed to have greater ease and the flexibility to be changed without needing tools. The tamper can be changed to suit your needs just by adjusting the central bracket. see(+)

Innovative gasket-saver system which prevents the loss of coffee when the product is collected, and at the same time prevents degradation of the gaskets of the coffee machine group. see(+)

The doser lever has an ergonomic design which is better adapted to the hand and can be installed left-handed or right-handed according to need. see(+)

Cunill grinders are the only ones in the market with the possibility of dual branding of the trade-mark. They can be personalised on the front of the doser and on the back of the grinder. see(+)
